Compact AC Pulse Ionizing Bar (separate power supply type) No.SH-60
Wide range of static elimination and size extension supporting any work environments
* Ion balance can be adjusted by changing a pulse ratio.
* The main body is as compact as 30 x 33 mm, ideal for installation in cramped spaces.
* Use of a branch box enables multiple bars to be operated from one power supply equipment.
* High-voltage cable can be attached/detached from the bar's main body.
PRODUCT SPEC
| Model | Body Size(mm) | Weight(g) | Discharge needle useful length(mm) | Electrode needles(pcs) | Code No. |
|---|---|---|---|---|---|
SH-60 |
653 x 33 x 30 | 630 | 525 | 16 | 621546 |
Dacay time (sec.): Within 0.5 sec
Relevant
* Branch box SH-SP2 * Relay cable (3m) SH-EC3 * Relay cable (5m) SH-EC5
MOVIE
CATALOG / LEAFLET

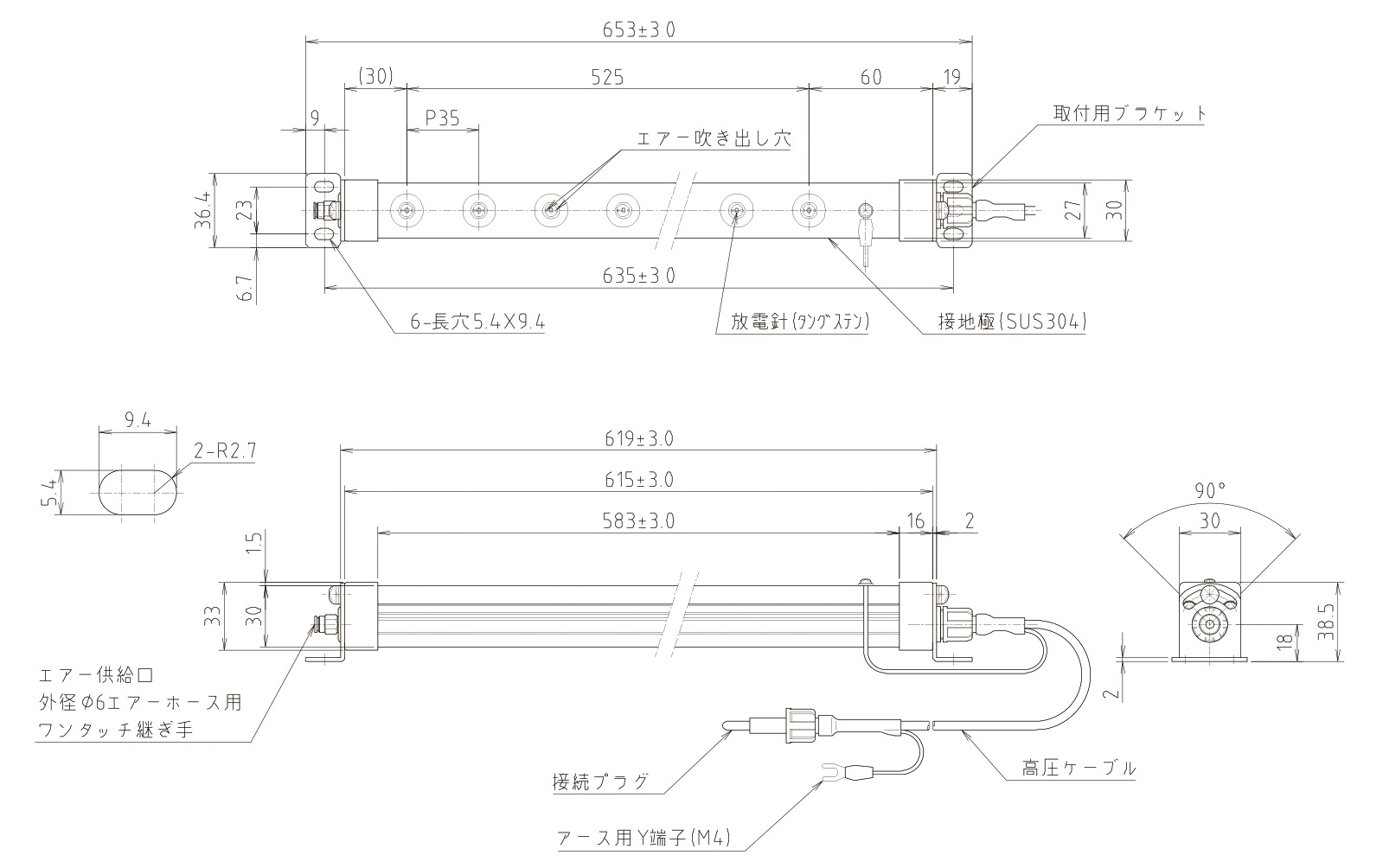

DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
