AC Pulse Ionizing Clean Bar No.C-60
Wide range of static elimination and size extension supporting any work environments
* Short type optimal for installation on a conveyor or in equipment.
* Consolidated terminals on the back side. Power can be supplied by daisy chain wiring.
PRODUCT SPEC
| Model | Body Size(mm) | Weight(g) | Applied voltage | Power supply | Current consumption(mA)typ. | Current consumption(mA)max. | Discharge needle useful length(mm) | Electrode needles(pcs) | Code No. |
|---|---|---|---|---|---|---|---|---|---|
C-60 |
602 x 90 x 46 | 1080 | AC8 to 12.5kV(p-p) | DC24V +/- 5% | 600 | 600 | 420 | 8 | 621858 |
Ionizing method: Pluse AC corona discharge
Dacay time (sec.): Within 0.8 sec
Frequency: 10steps(0.1 to 50Hz)
Pulse ratio: +:40 to 70%, -:60 to 30%
Voltage level: +/- 10steps each
Contents
* Power cable (10m) * End blackets (included with device) * Interface cable (10m)
Relevant
* AC Adapter AD24-ITE * AD24-IT19E * Power Supply cable (5m) CT-5
MOVIE
CATALOG / LEAFLET

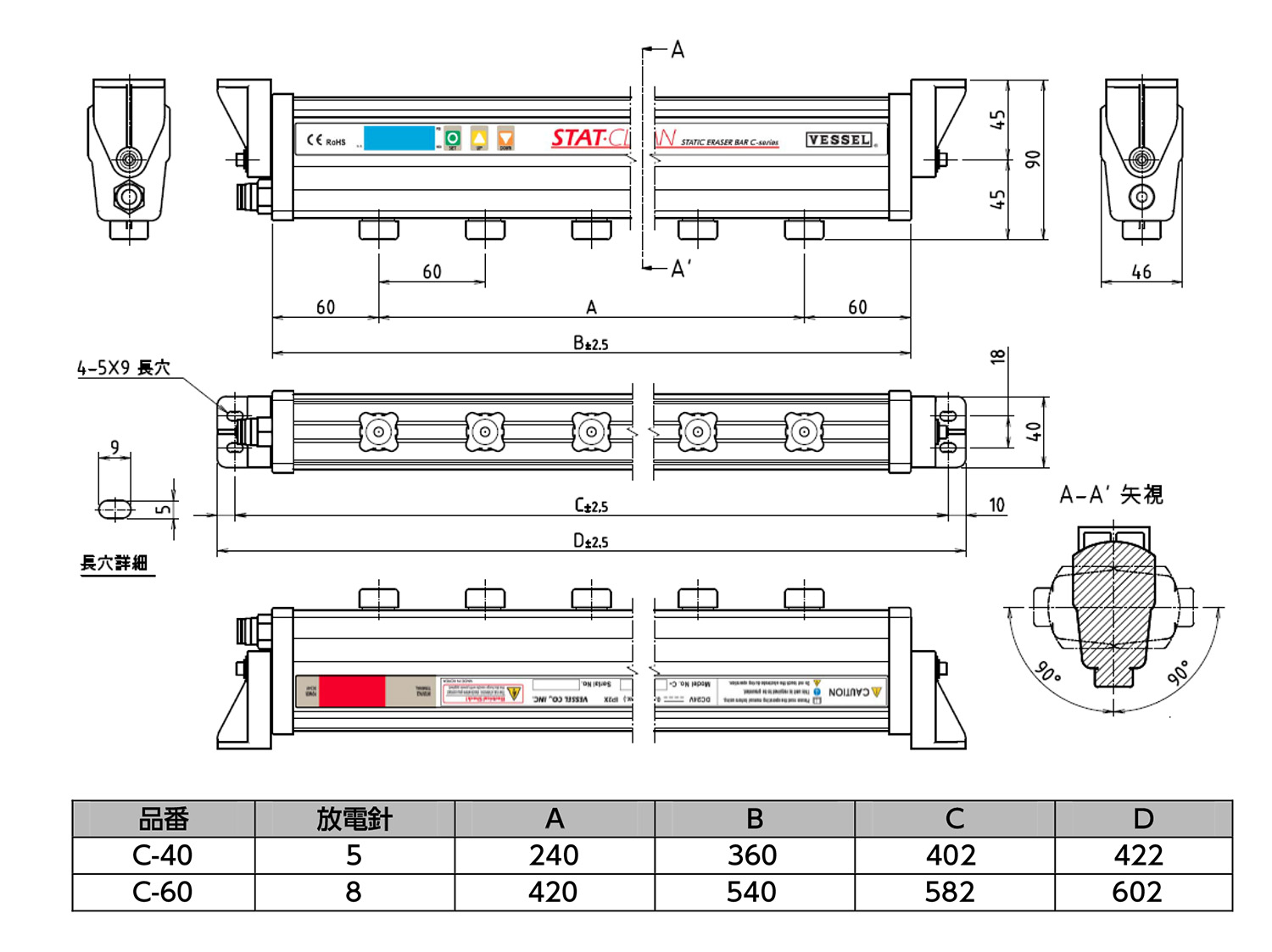

DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
