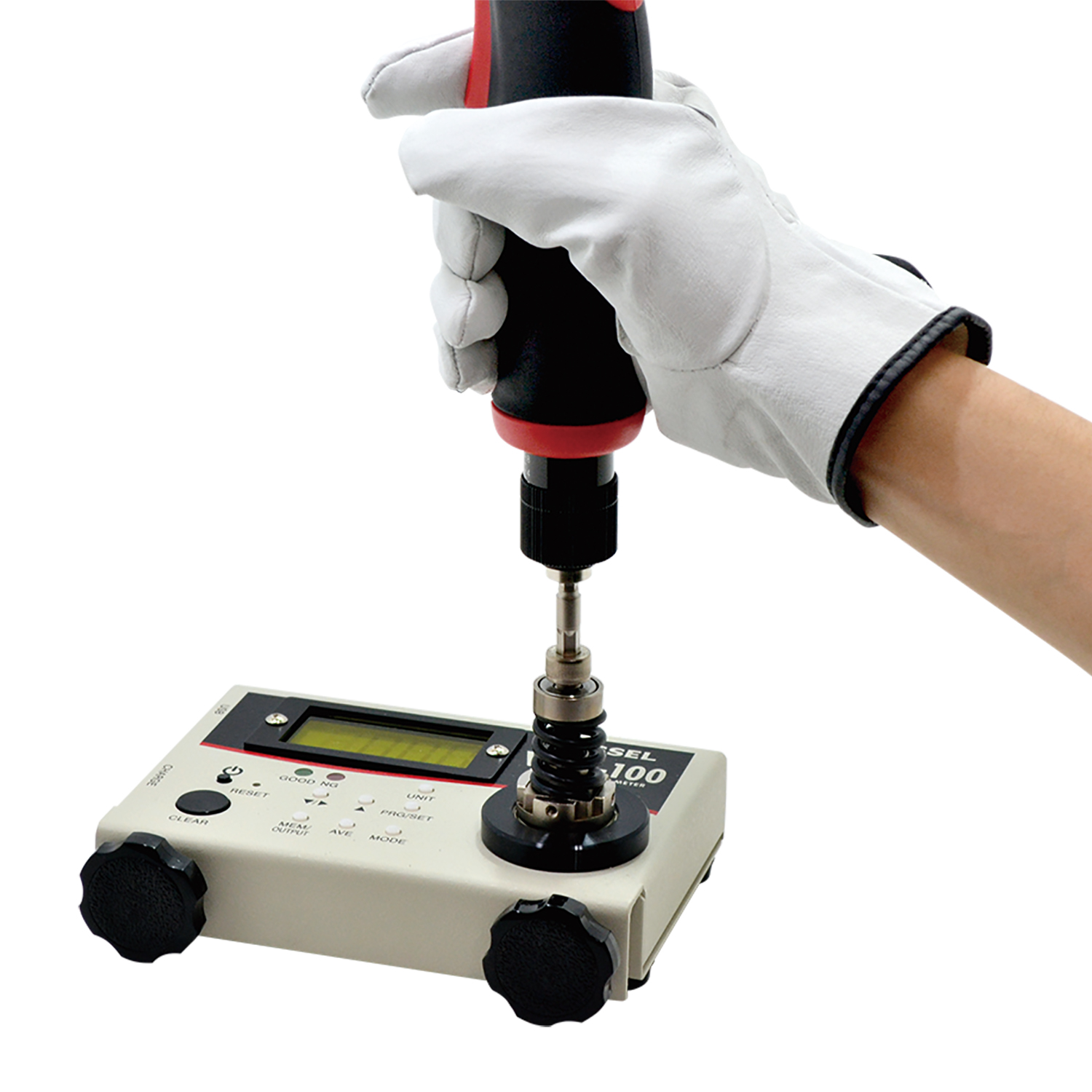

Torque Meter No.VTM-100
VE series

Ensure secure screw tightening with daily torque checks.

* Torque accuracy within ±0.5% enables accurate torque measurement.
* Light and compact design, the main body is approximately 1kg. Rechargeable and convenient to carry around.
* Capable of measuring both tightening and loosening directions.
* Automatic power off (power turns OFF after 10minutes of non-operation).

PRODUCT SPEC

Model Cable length(m) Power supply Charging / usage Measurement range(N・m) Precision Unit measurement Socket outlet(mm) Weight(g) EDP No.

VTM-100

1.5 Nickel-cadmium battery 1.2V x 5 cells (700 mAh) Charging approx. 3 hours/max. 12 hours of use 0.1 to 10.0 ±0.5% (±1 digit below 199 digits) N m/cN m 20 x 20 (SQ9.5) 1000 551013

Item PKG
330 x 255 x 83

Applicable
VE-4000(P, AC, PAC), 4500(P, HS4, AC, PAC), 5000(P, DL5, R, SOP), 6000(P, DL5, R, SOP)

Contents
* Torque adapter VJ-10K * VJ-50 * H6mm Four types of H5mm bit 1 each * AC adapter (input 100 to 240 VAC, 50/60 Hz, 0.3A output 12 VDC, 0.5A) * Test Results* Proof of Calibration* Traceability System Diagram * usermanual
