Extra Pressure Booster No.P-10L – ベッセル製品英語

AIR NIPPERS

Air Nippers, Servo Heat Nippers, Air Scissors, and so on.

Extra Pressure Booster No.P-10L

For cutting or crimping of resin or metals

* This unit is to be used in case the originally required pressure is not obtainable by the limit of space and air pressure.

ECO

PRODUCT SPEC

Model Capacity O/D (mm) Soft Plastic Capacity O/D (mm) Hard Plastic Capacity O/D (mm) Copper Capacity O/D (mm) Steel Air consumption(cm3 /str.) Air pressure(MPa) Overall Length(mm) Weight(g) Code No.

P-10L

5 4 2.6 1.6 223 Within 0.5 71 115 360051

Applicable
GT-NS10L/NR10L/N12

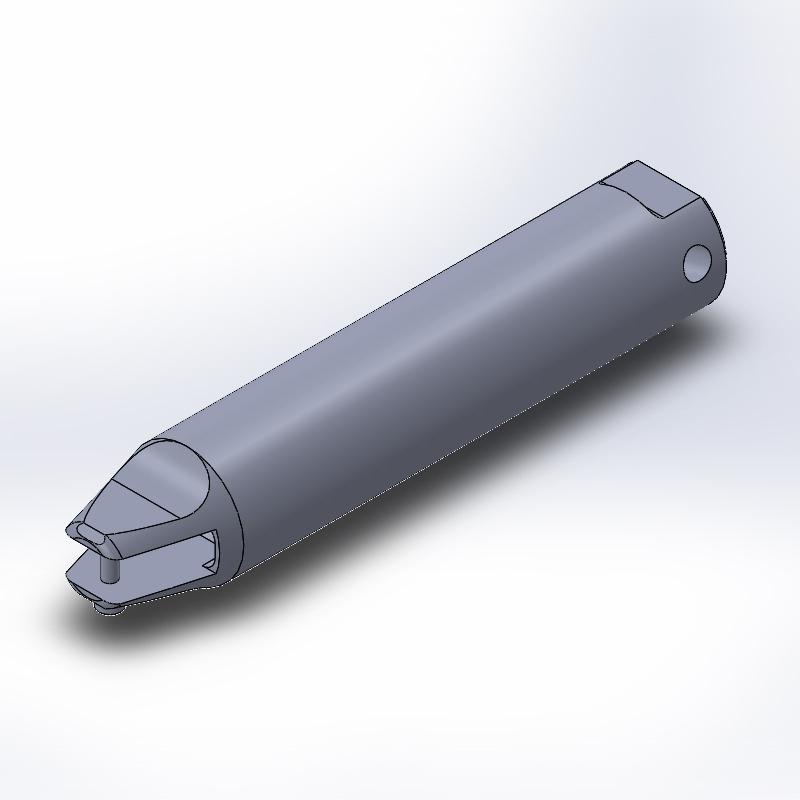

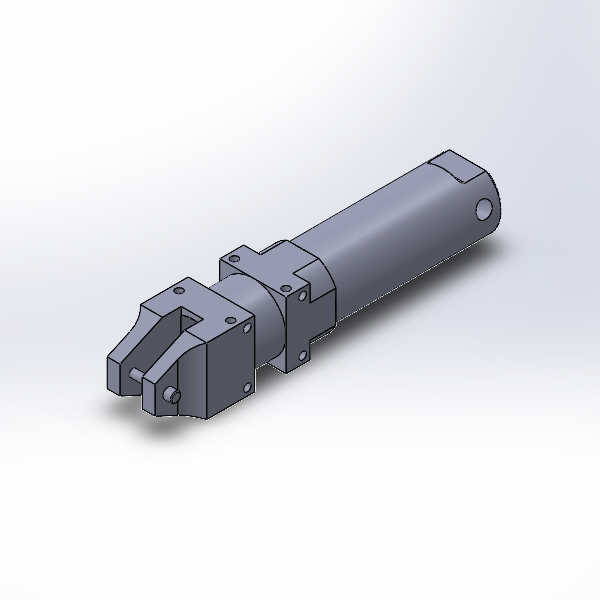

DRAWING / CAD
