- Air Nipper Round-Type without Lever No.GT-NR30
AIR NIPPERS
Air Nippers, Servo Heat Nippers, Air Scissors, and so on.
Air Nipper Round-Type without Lever No.GT-NR30
-

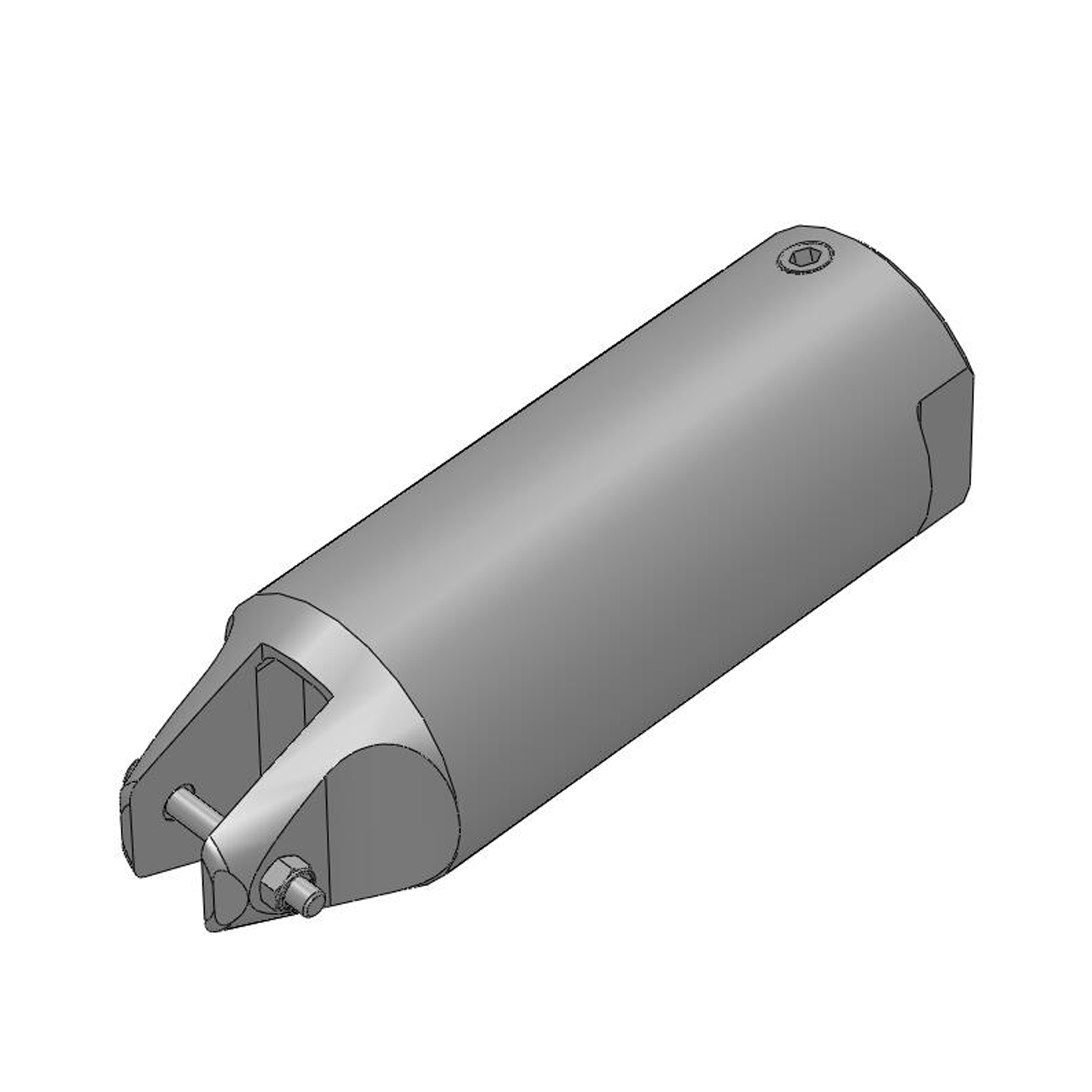

- The image is a 3D image.
For cutting or crimping of resin or metals
* The position of air intake port is 180-degree rotatable.
* Two air intake ports are provided, so they can be switched depending on the mounting place.
PRODUCT SPEC
| Model | Capacity O/D (mm) Soft Plastic | Capacity O/D (mm) Hard Plastic | Capacity O/D (mm) Copper | Capacity O/D (mm) Steel | Air consumption(cm3 /str.) | Air pressure(MPa) | Hose Coupling I/D(mm) | Hose coupling | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|---|
GT-NR30 |
10 | 6.5 | 3.3 | 2.8 | 584 | 0.5 to 0.6 | 5 | Rc 1/8 | 165 | 505 | 360020 |
CATALOG / LEAFLET
DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
