- Laterally facing blades for plastics No.N20AML1498
AIR NIPPERS
Air Nippers, Servo Heat Nippers, Air Scissors, and so on.

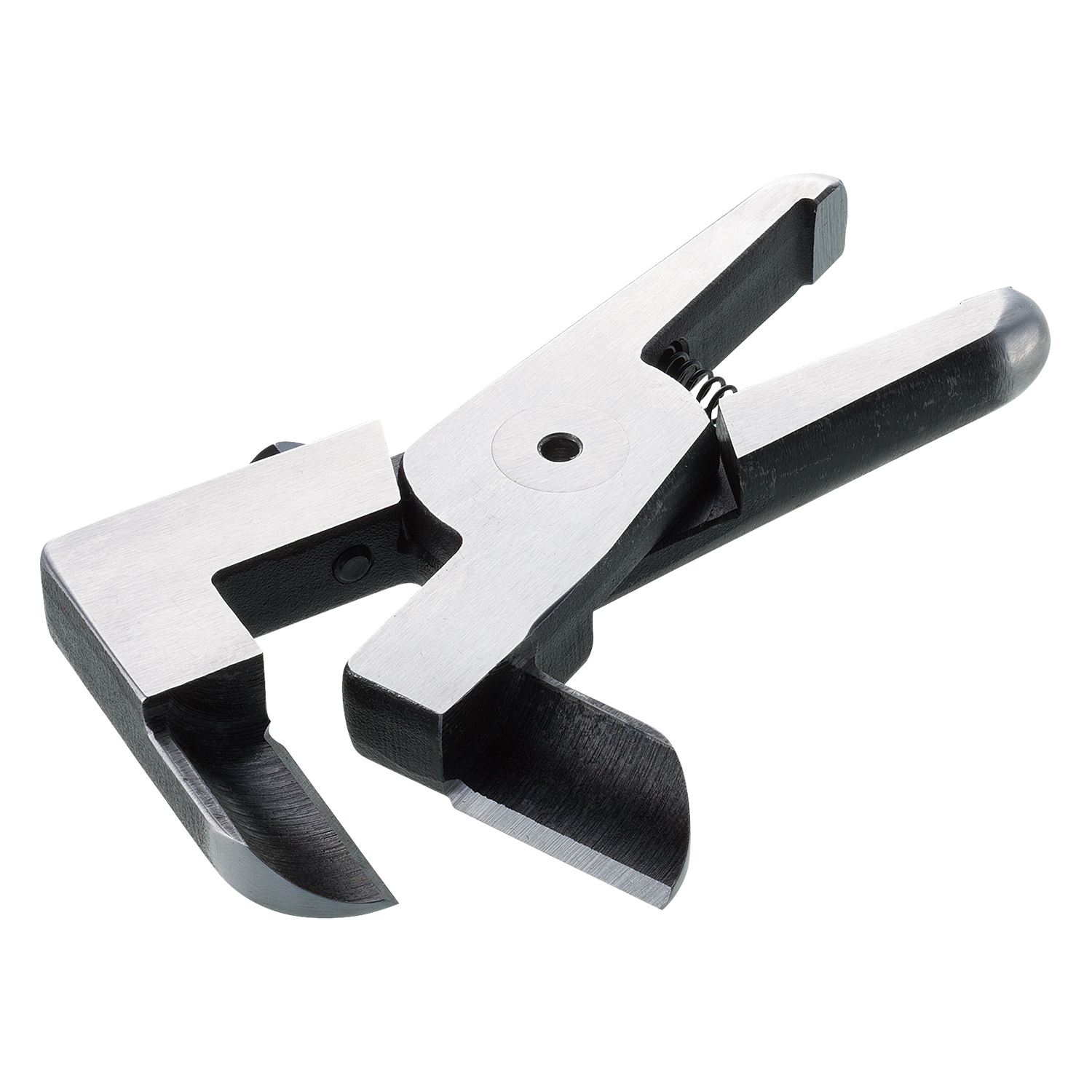

Laterally facing blades for plastics No.N20AML1498
For cutting or crimping of resin
* AMR/AML This is a set of blades for plastic where the cutting area is bent 90 degrees. It is useful when it is hard for the nipper to get into, for example, in cramped spaces.
PRODUCT SPEC
| Model | Capacity O/D (mm) Soft Plastic | Capacity O/D (mm) Hard Plastic | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|
N20AML1498 |
10 x 1.5 | 8 x 1 | 115 | 270 | 360384 |
Applicable
GT-NS20/N20/NR20/NB20
CATALOG / LEAFLET
DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
