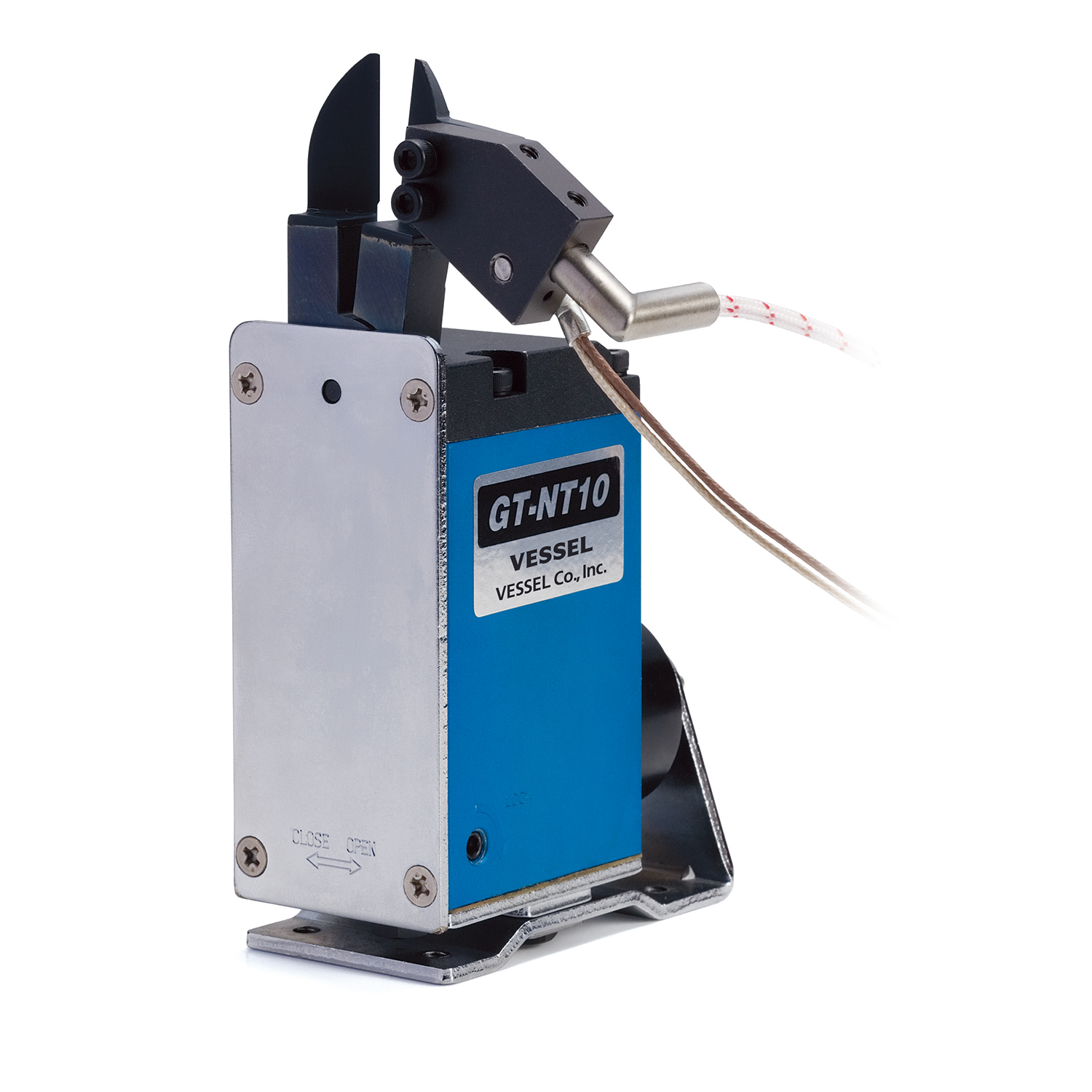

Heat air nipper Blade No.NTH10AJ
-
- The image is a 3D image.
Cutting transparent resin by thermal force without cracks or whitening
* One blade is fixed in position, facilitating easy gate alignment. In addition, a slide function presses the product into position.
PRODUCT SPEC
| Model | Capacity O/D (mm)Acrylic | Blade Edge Temp. (MAX deg.)(MAX ℃) | Blade opening(mm) | Position Accuracy(mm) | Overall Length(mm) | Weight(g) | EDP No. |
|---|---|---|---|---|---|---|---|
NTH10AJ |
3.5 | 200 | 4.5 | 17 | 94 | 88 | 360547 |
Applicable
GT-NT10
Relevant
* Temperature controlle (DTC-001) * Bracke
CATALOG / LEAFLET
DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
