- Ball Quick Catcher ２pcs set No.QB-22K2RY(Red & Yellow)
CONSTRUCTION BITS / SOCKETS / DRILL
Construction Bits, sockets, Drill Bits / Drill Chucks, and so on.

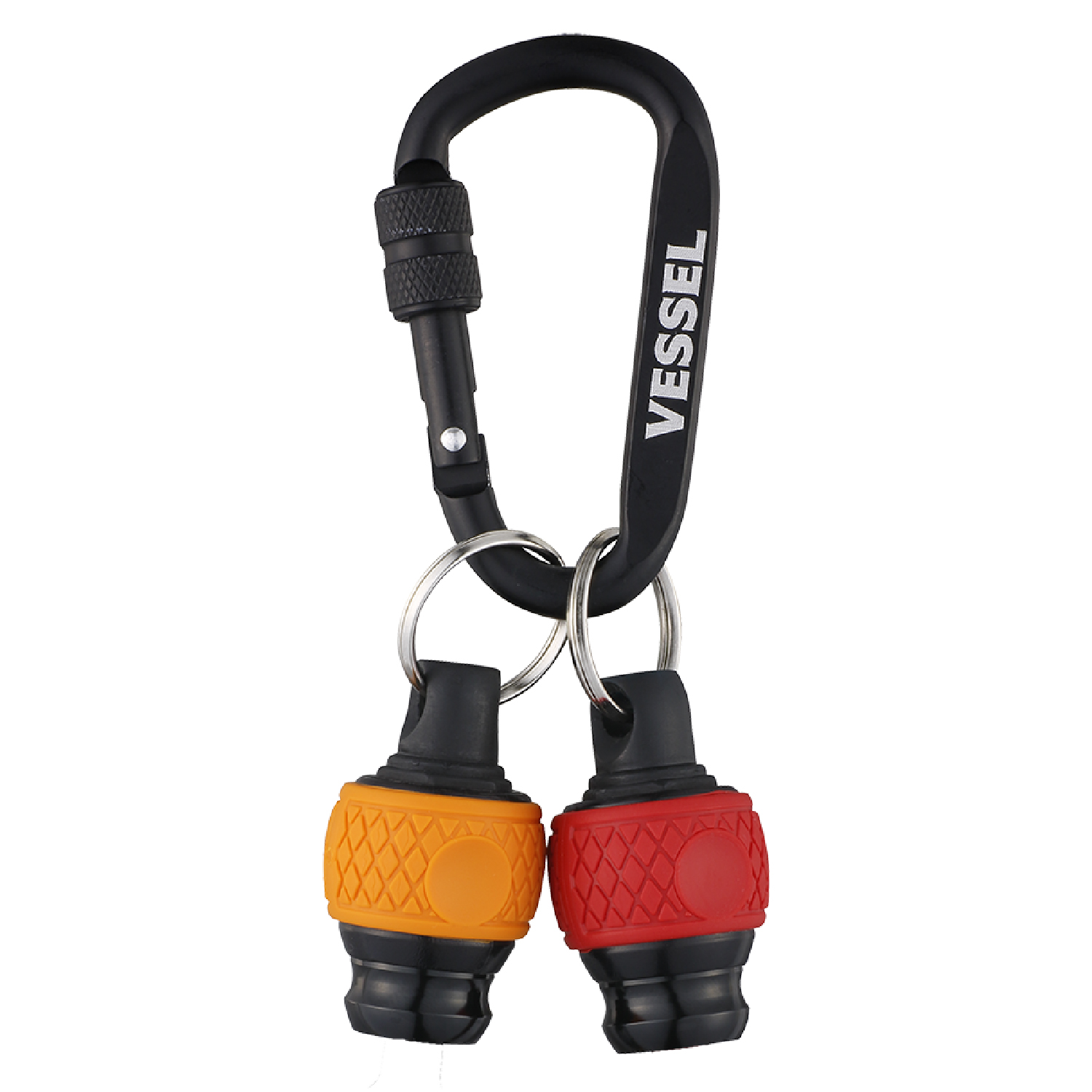

Ball Quick Catcher ２pcs set No.QB-22K2RY(Red & Yellow)

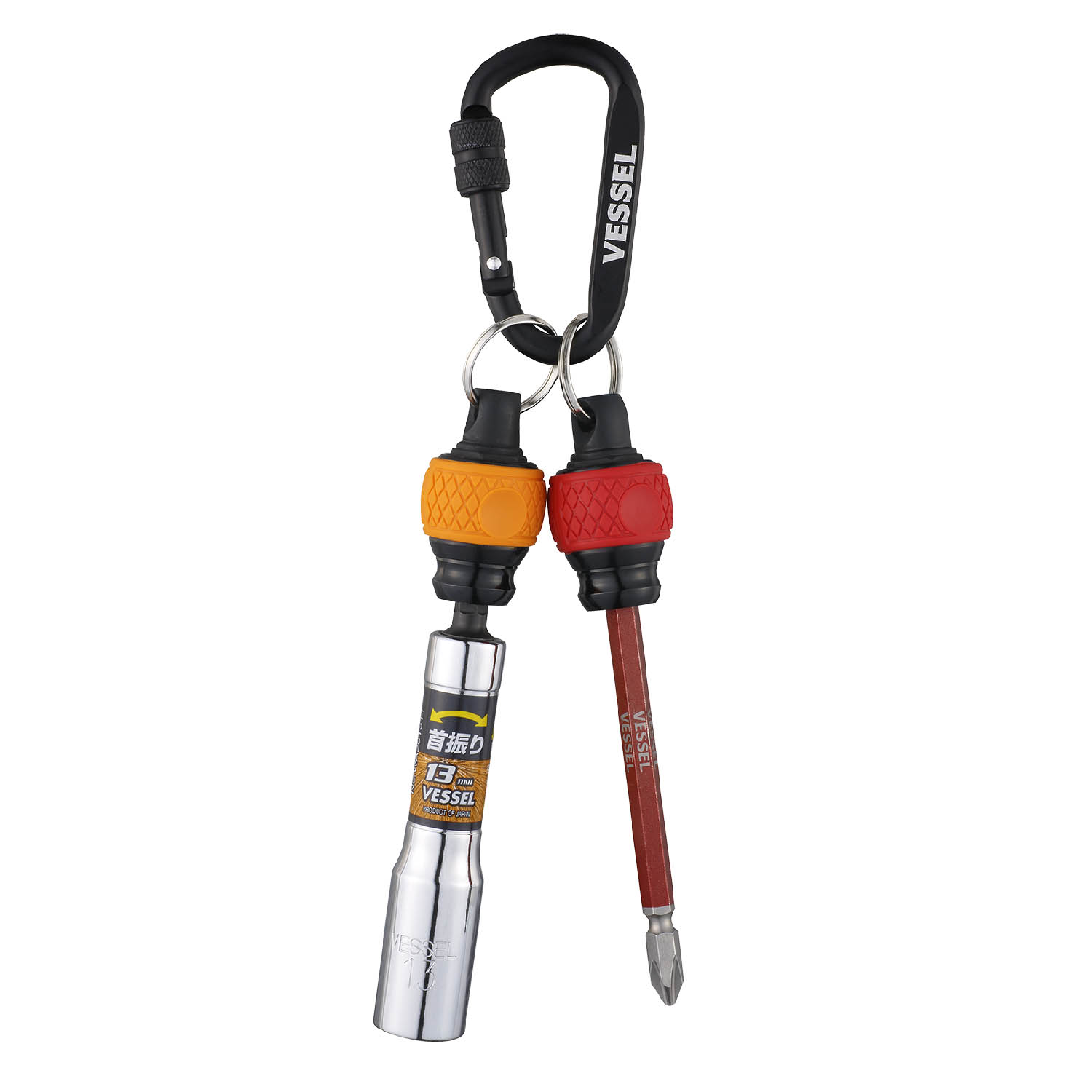

Bit holder can be used as Screwdriver.
* Glass fiber containing resin. Reinforced plastic based light-weight material.
* Cushion grip: elastic texture.
* Aluminum sleeve increases rigidity. Discoloration resistance alumite.

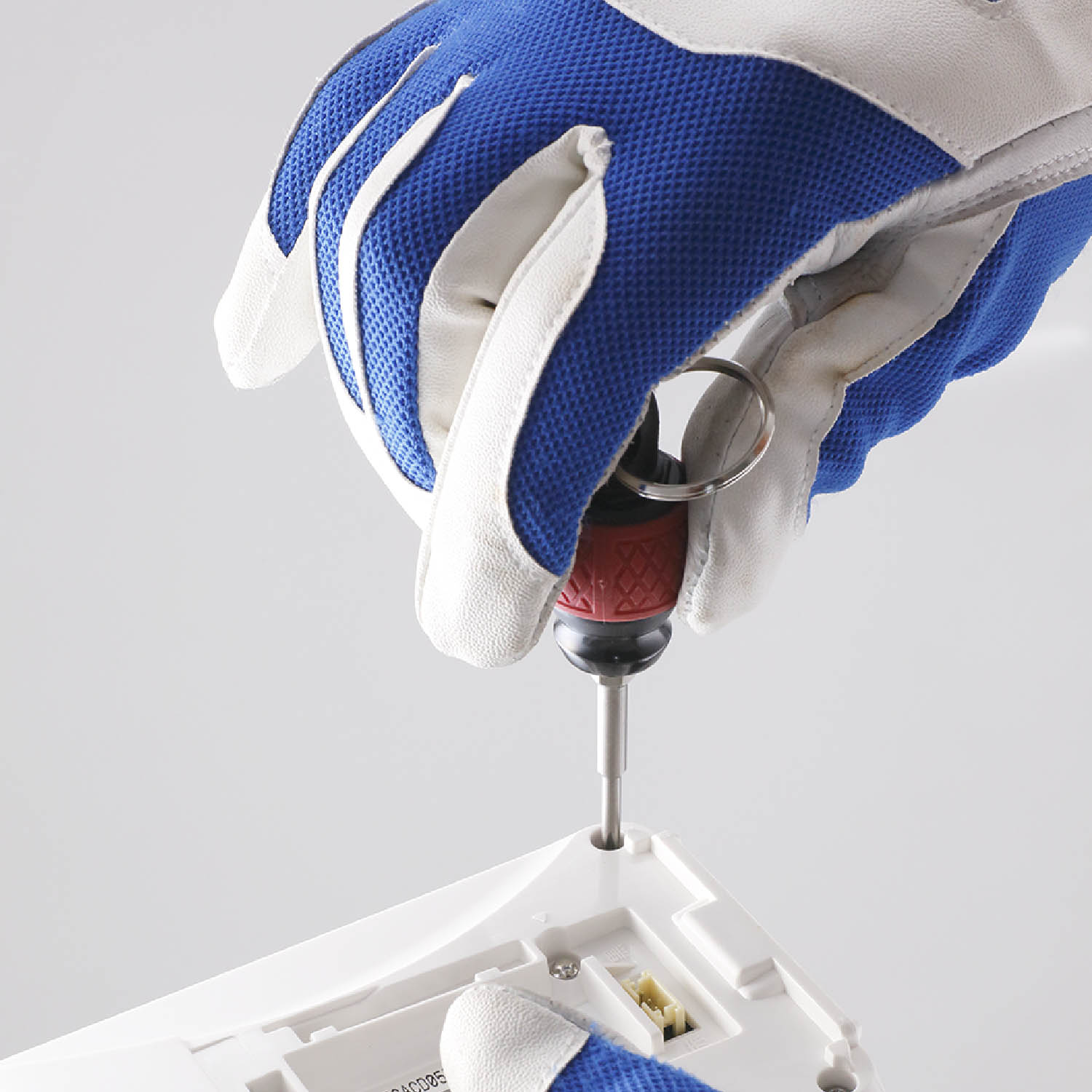

* Can be used as screwdriver.(to be used with M4 size small screw or less, or Torsion torque 2N･m or less)
PRODUCT SPEC
| Model | Class | Tip | Overall Lengthmm | Weightg | Inner C/T | Outer C/T | Code No. |
|---|---|---|---|---|---|---|---|
QB-22K2RY(Red & Yellow) |
Bit Catcher | H6.35 | 157 | 51 | 10 | 100 | 486935 |
Details
(Red & Yellow)
Item PKG (mm)
157 x 56 x 28
CATALOG / LEAFLET
Precautions
* The weight of a tool attached to this product should be 500g or less.
* When using this product as a screwdriver, do not apply more force than required.
* Key adapters made by other companies cannot be attached to Quick Catcher.
* Insert the bit as far as it will go into the chuck and make sure that it does not come off before using it.
* When attaching or detaching the bit, hold it firmly to prevent it from dropping off unexpectedly.
* Do not attach a sharp tool, such as drill, because they are dangerous.
* The sleeve may rise due to the impact during carrying or using, and the bit may come off. Please be careful especially when using this product in high places.
