Square Air Nipper No.GT-NS20

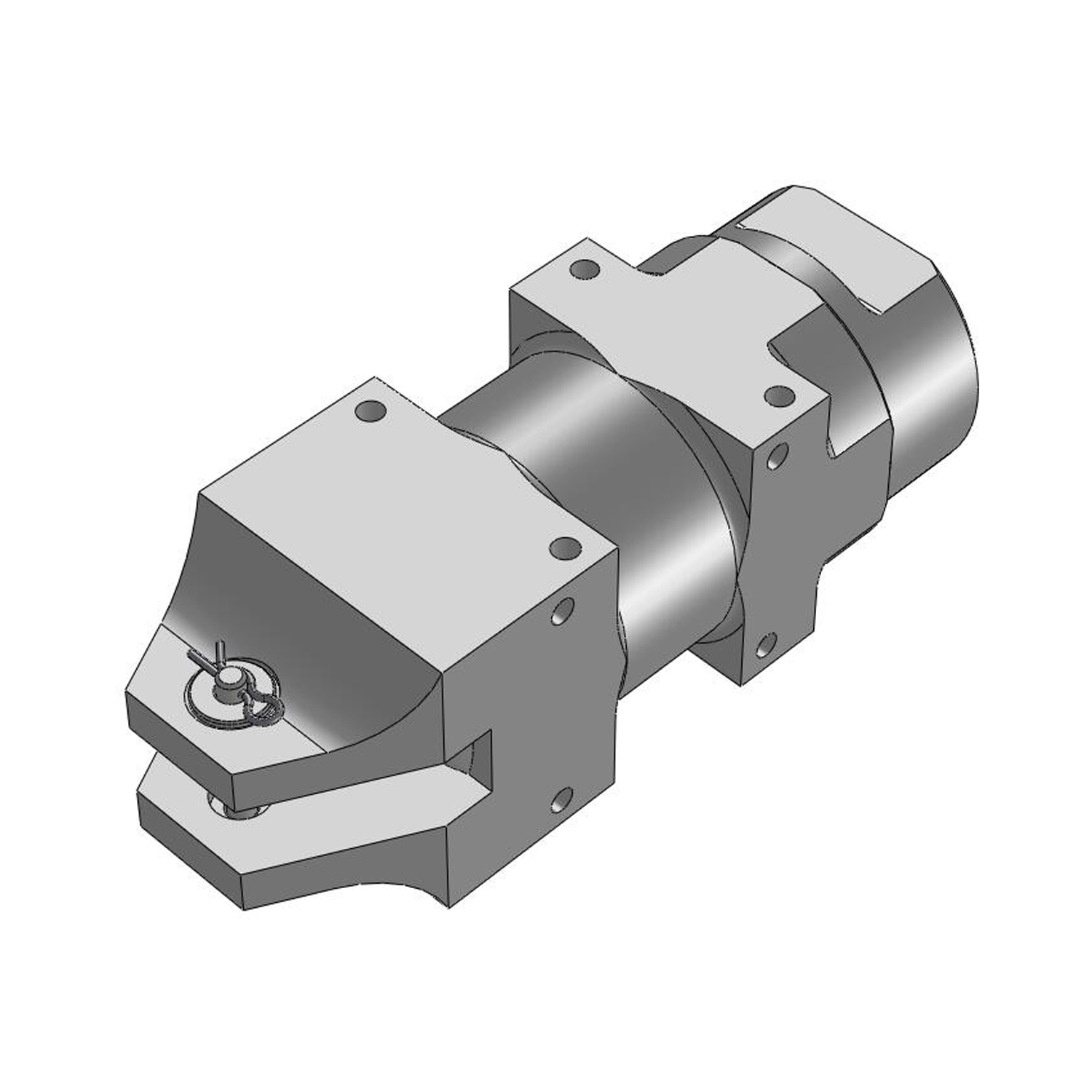

  • The image is a 3D image.
The image is a 3D image.
The image is an example of blade installation.

For cutting or crimping of resin or metals

* VESSEL provides a generous selection of blades for gate-cutting of resin molded products and various wire cutting in a welding automatic machine and wire winding machine. ・The position of air intake port is 180-degree rotatable. ・Two air intake ports are provided, so they can be switched depending on the mounting place.

ECO

The image is a 3D image.
The image is an example of blade installation.

PRODUCT SPEC

Model Capacity O/D (mm) Soft Plastic Capacity O/D (mm) Hard Plastic Capacity O/D (mm) Copper Capacity O/D (mm) Steel Air consumption(cm3 /str.) Air pressure(MPa) Hose Coupling I/D(mm) Hose coupling Overall Length(mm) Weight(g) EDP No.

GT-NS20

7 5 2.6 2 230 0.5 to 0.6 5 Rc 1/8 129 370 360010
