Square Air Nipper No.GT-NS3
-

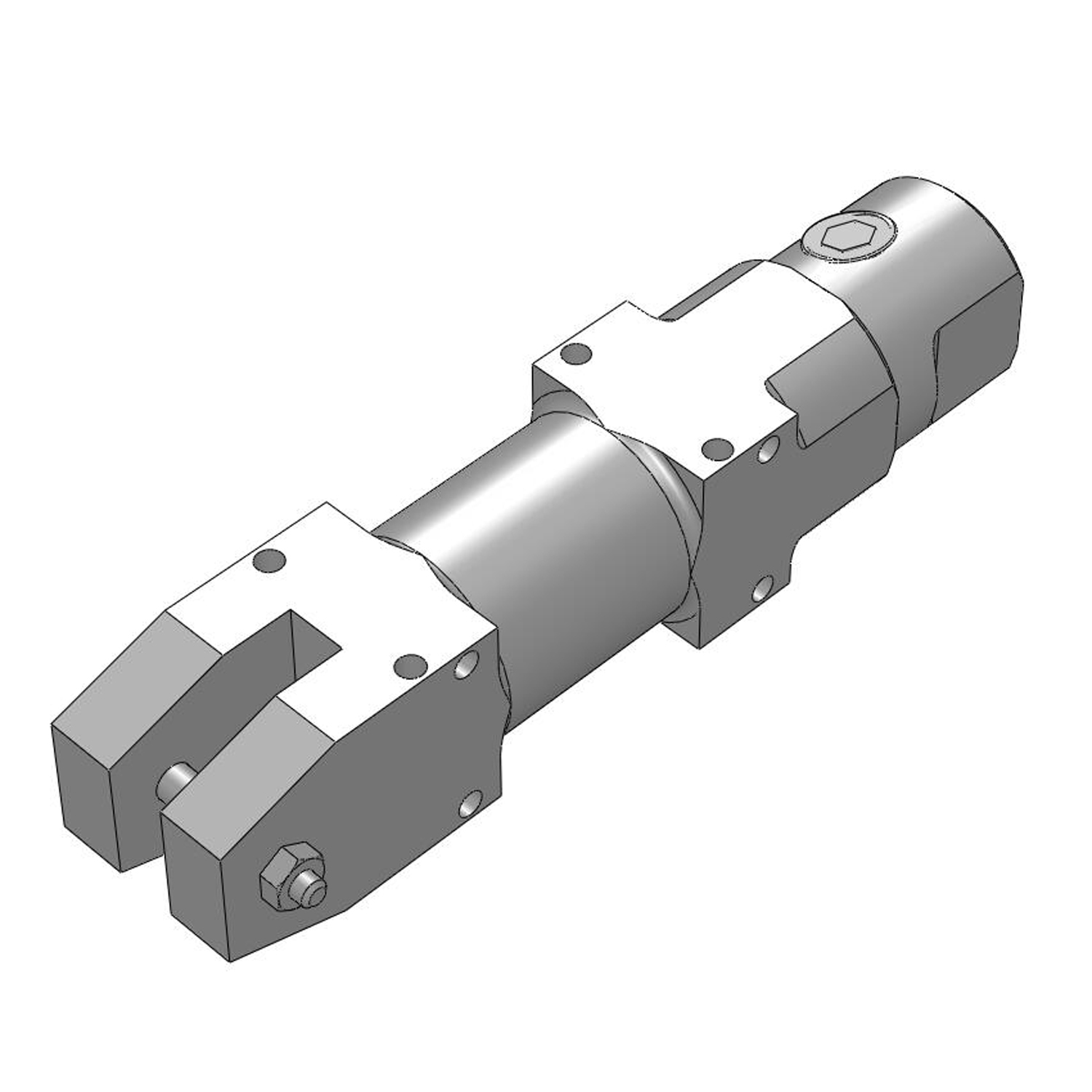

- The image is a 3D image.
For cutting or crimping of resin or metals
* VESSEL provides a generous selection of blades for gate-cutting of resin molded products and various wire cutting in a welding automatic machine and wire winding machine. ・The position of air intake port is 180-degree rotatable. ・Two air intake ports are provided, so they can be switched depending on the mounting place.
PRODUCT SPEC
| Model | Capacity O/D (mm) Soft Plastic | Capacity O/D (mm) Copper | Capacity O/D (mm) Steel | Air consumption(cm3 /str.) | Air pressure(MPa) | Hose Coupling I/D(mm) | Hose coupling | Overall Length(mm) | Weight(g) | Code No. |
|---|---|---|---|---|---|---|---|---|---|---|
GT-NS3 |
2 | 1 | 0.5 | 45 | 0.4 to 0.5 | 5 | Rc 1/8 | 110 | 95 | 360012 |
CATALOG / LEAFLET
DRAWING / CAD
In case that you fail to download DXF files.
2D Data (DXF files) may not be downloaded correctly by left click and a series of letters may be shown in some computer environment.
In this case, please click right over letters "DOWNLOAD", choose "Save Target As...", and download. If the file extension is ".html", please change it to ".dxf".
